76 Projects TT Mount 3.0
76 Projects TT Mount 3.0
76 Projects TT Mount 3.0 is the Leading Computer Mount for Aero Extensions
Highly Configurable TT Mount for Computers, Lights, Cameras & CDA Devices
Building on previous versions that have been used by world, Olympic, and Ironman champions the latest 3.0 version of our TT mount features a new 'Clip' module system for fast changes between devices. A 'no-turn' computer insert is now standard and can be easily configured to suit almost any set-up and extension.
3.0 PROTOTYPE TESTED AND USED BY SAM LONG
Recommended and fitted by extension manufacturers and bike fitters including; Drag2Zero, Sync Ergonomics, 51 Speedshop, Matt Bottrill, and Ivan O'Gorman.
Standard widths 50mm to 90mm bars centre to centre (28-68mm inside to inside).
Extra-wide brackets are available for widths 90mm to 130mm bars centre to centre (68-108mm inside to inside). Purchase these brackets in addition to the mount.
'No-turn' inserts for Garmin or Wahoo. The computer stays still whilst a lever locks the computer in place. The computer will therefore fit in narrow gaps between extensions.
Attaches to bars with Hypalon hook and loop straps for easy adjustment (can be cut to length).
Fits all round profile bars and most shaped bars including Zipp Vuka, AeroCoach Angles, and Sync 2.0 Evo.
Right-angled brackets are available to fit Drag2Zero USP, 51 Speedshop Rev and other bars with near right angles inside top profiles. Purchase these brackets in addition to the mount.
Brackets to fit Vision TFE Pro extensions. Coming Soon.
'Clip' modules available for GoPro, Exposure Trace, band-on lights (universal), and blank cover supplied as standard. Note that the 'Clip' modules only work with 3.0 Mounts.
Specification
Weight: 33g when no spacers are used
Material: MJF Nylon PA12 - manufactured in house
Hypalon strap
Additional contents:
Spacers and stainless steel screws are provided to allow fine-tuning. Spacers: 2x2mm, 2x3mm, 2x5mm, 2x10m. Screws: 2x M4x20(fitted), 2xM4x25, 2xM4x30, 2xM4x35, 2xM4x40
FAQ
Will this fit my extensions? The standard brackets will fit all around and the majority of profiled extensions. For flat-topped extensions such as D2Z or 51 SpeedShop Evo, the right-angled brackets are a better fit. Vision TFE Pro brackets are specific to the particular size. If you are unsure or your extensions have a concave top surface then use the message system or email contact@edinburghbikefitting.com to contact us.
I'm not sure if I need extra wide brackets. The standard brackets will fit a gap of 28-68mm between extensions at the mounting point. Extra wide will do 68-108mm between extensions.
Can I fit a device weighing over 200g? We don't recommend it due to the excessive stress that may be put on the joints of the mount. Particularly over bad road surfaces.
Do you plan to do a version to fit other computer brands? At this point, we have no intention of doing so. In the past, we had produced inserts to suit other computers, but demand was very low. 3rd Part adapters are generally available so other computers may fit a Garmin insert.
Can I use a Garmin extended battery with this mount? The Garmin battery requires specific details that this mount cannot accommodate. However, we do offer the Ultra Distance TT mount which does work with the battery.
3 way adjustability
Perfect positioning of your computer, whatever the shape, angle or toe-in of your extensions.
STAY AERO. Move Your Computer NOT Your Head
Some computer mounts for extensions may claim to be aero, and in isolation in a wind tunnel they maybe, but what about in the real world?
In the real world the rider accounts for 60% of drag and the savings generated by wearing a aero helmet are soon lost if the rider needs to move their head to every time they view their computer.
We recommend the mount be placed behind the hands whilst in riding position and angling the screen for perfect viewing. This will minimise head movement and therefore drag.

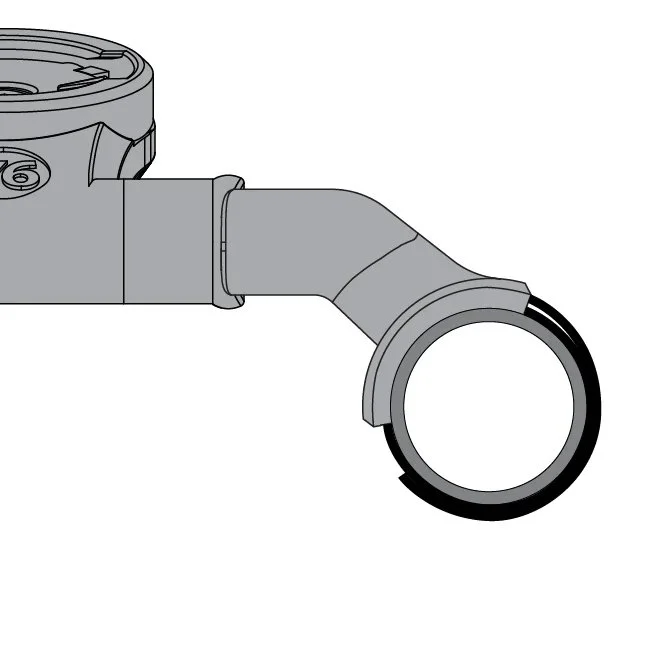

Adapts to different bar shapes
By using a combination of rigid bracket and a hypalon hook and loop strap the TT mount 3.0 fits profiled bars as well as they do round ones.
left to right: standard bracket on profiled bars, standard bracket on round bars, right angled bracket on flat bars, extra wide bracket on round bars.
